AC EV Chargers, built to scale
from driveway to fleet.
Terravolt's AC EV chargers cover every site, a compact single-phase unit for homes, and a three-phase platform for workplaces and fleets, with remote monitoring so you always know exactly where your charge stands.
Charging Live
Choose the type that fits your site.
Two AC charging types - single-phase for homes, three-phase for faster fleet and commercial turnaround.
Residential7kW AC Charger
Ideal for homes and driveways - 32A single-phase output for a full overnight charge.
- 7kW Rated Power
- 32A Max Current
- IP65 Weatherproof
Commercial & Fleet11kW / 22kW AC Charger
Built for workplaces and fleets, three-phase power for faster, higher-throughput charging.
- 22kW Max Power
- 32A Max Current
- OCPP Ready

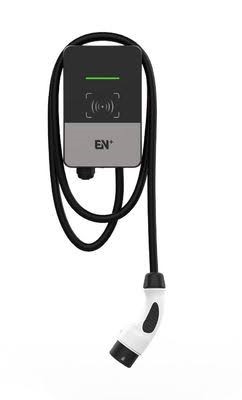

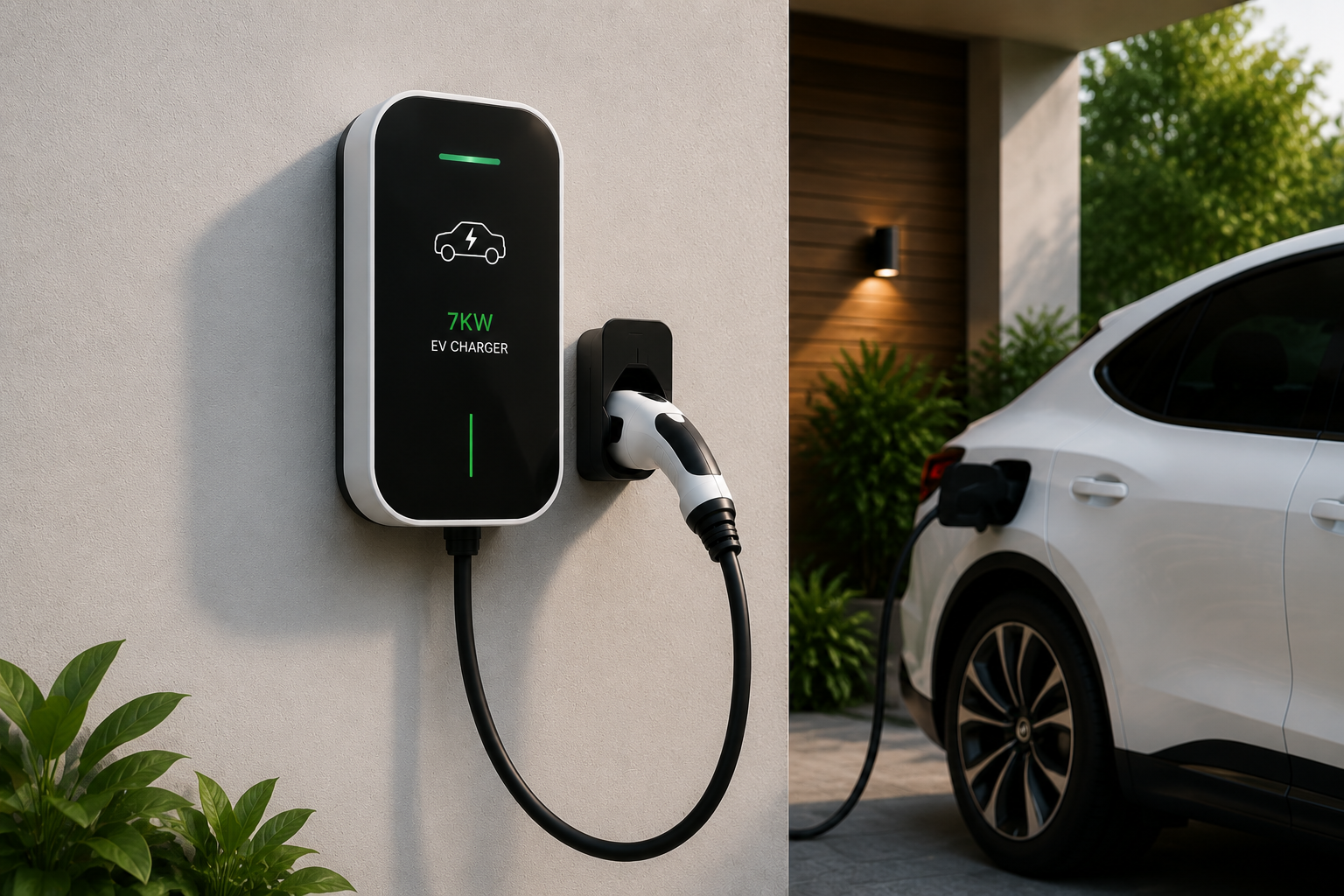

Single Phase - 7kW
Designed for homes, apartments and small offices where a standard single-phase electrical supply is available. Delivers a full charge overnight without any load on daytime power usage, making it the most common choice for residential EV owners across Pakistan and the UAE.
- Best suited for daily commuter EVs charged overnight
- Simple installation no three-phase supply required
- Compact wall-mounted design, indoor or outdoor rated (IP65)
- Smart app control and scheduled charging supported
Three Phase - 11kW / 22kW
Built for commercial sites, workplaces, and fleet operators who need faster turnaround between charging sessions. Runs on a three-phase supply to deliver significantly higher power output, cutting charge time for multiple vehicles throughout the day.
- Ideal for fleet depots, offices and commercial parking
- OCPP-ready for integration with charge management platforms
- Supports higher daily vehicle turnover
- Scalable for multi-unit installations across a site
Everything a single-phase home setup needs - nothing it doesn't.
7kW Steady Output
Full 32A single-phase charging - a near-empty EV battery tops up comfortably overnight.
IP65 Weatherproof
Dust-tight, jet-water-resistant housing rated for outdoor wall or pedestal mounting in any season.

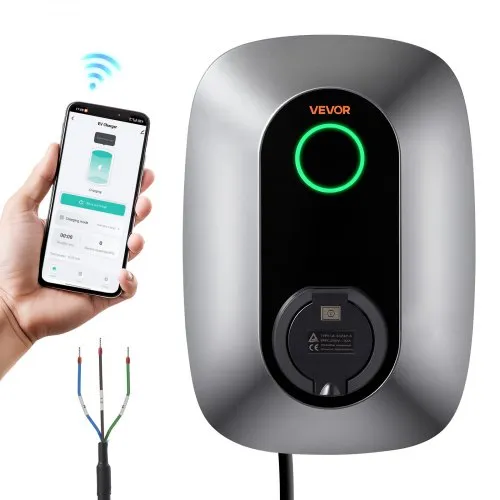

Wi-Fi, Ethernet & Bluetooth
Monitor sessions, schedule off-peak charging and push firmware updates remotely, from any device.
RFID & App Authentication
Restrict who can charge with a tap card or the companion app - ideal for shared driveways.
Built-in Energy Meter
MID-accurate metering logs every session, so cost tracking and reimbursement stay simple.
OCPP 1.6J Ready
Plugs straight into a charge-management platform for load balancing across multiple units.
Built to a standard, not just a spec.
Live in four steps.
Site Survey
We check your panel capacity, cable run and mounting spot to confirm 32A single-phase is available.
Wall or Pedestal Mount
Certified electrician installs the unit and runs a dedicated circuit back to your distribution board.
Network & App Pairing
Connect over Wi-Fi or Ethernet, register RFID cards, and set your preferred charging schedule.
Plug In & Charge

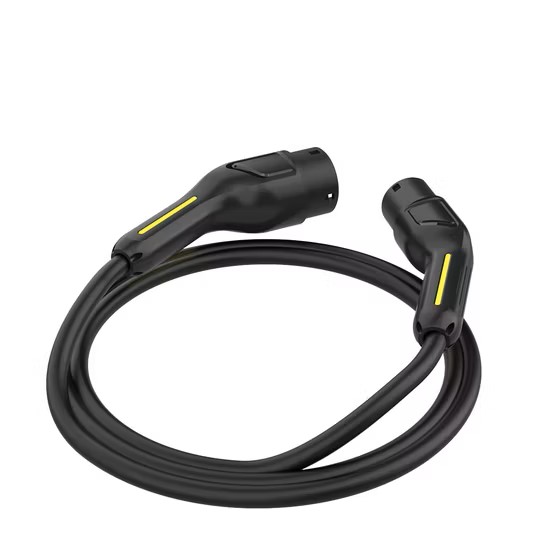

Tap to authenticate, plug the Type 2 cable in, and let the charger do the rest overnight.
Every angle, every detail.
Get your AC charger quoted this week.
Share a few details and our team will confirm site requirements, lead time and installed pricing for single-phase or three-phase setups.
- Free site feasibility check
- Certified electrician installation
- 3-year hardware warranty
